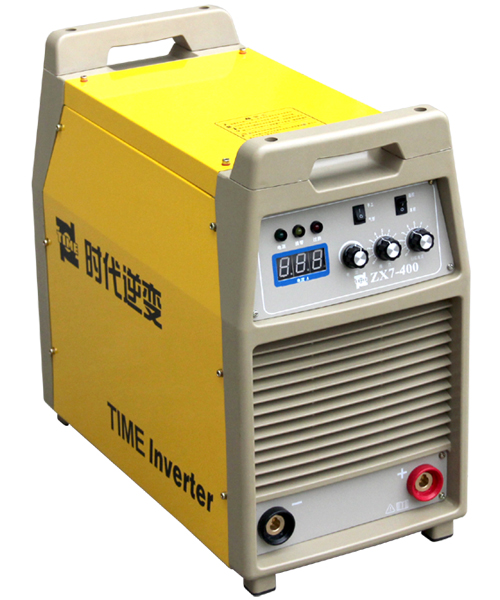

MMA Arc Welding Power Source
ZX7-400(PE60-400/400E/400F)
Main characteristics:
● IGBT inverter technology
● Arc ignition with high success rate
● Simple argon arc
● Wide range of power supply
● Stable arc, molten pool is easy to control
● Small splash, electrode non-stick
● Arc thrust current adjustable to ensure the best performance
● Arc current adjustable to ensure the best performance
● Electrode rod with Acid, alkali, heat resistant steel and so on can be used
● Digital display for current to accurate preset welding current before welding
● Wireless/wire remote controller is optional
|
Model |
ZX7-400 |
||
|
Company type |
PE60-400 |
PE60-400E |
PE60-400F |
|
Rated input voltage |
3 phase , AC 380V±(15-20)%, 50/60Hz |
||
|
Rated input current |
26A |
||
|
Rated Input capacity |
14.4KW |
||
|
No-load voltage |
76V±5% |
||
|
Current adjusting range |
20 ~ 400A |
||
|
Arc force adjusting range |
0~200 |
||
|
Ignition current adjusting range |
0~200 |
||
|
Carbon rod |
Φ4.0-Φ6.0 |
||
|
Duty cycle |
60% |
||
|
Power factor(cosΦ) |
≥ 0.9 |
||
|
Efficiency (η) |
93% |
||
|
Insulation grade |
F |
||
|
Case protection grade |
IP23S |
||
|
Cooling |
Wind |
||
|
Dimensions (mm) |
560×300×530（mm） |
||
|
Net weight (kg) |
33kg |
||
|
Remark |
Over 200m long welding cable can be used; Gouging |
Cellulose welding |
Suitable to use with generator |
