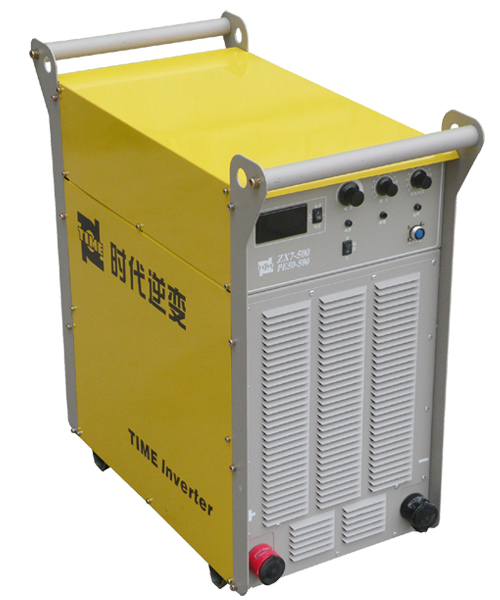

MMA Arc Welding Power Source
ZX7-500（PE50-500）
Main characteristics:
● IGBT inverter technology
● Arc ignition with high success rate
● Simple argon arc
● Wide range of power supply
● Stable arc, molten pool is easy to control
● Small splash, electrode non-stick
● Arc thrust current adjustable to ensure the best performance
● Arc current adjustable to ensure the best performance
● Electrode rod with Acid, alkali, heat resistant steel and so on can be used
● Digital display for current to accurate preset welding current before welding
● Wireless/wire remote controller is optional
|
Model |
ZX7-500(PE50-500) |
|
Rated input voltage |
3 phase , AC 380V±15%, 50/60Hz |
|
Rated input current |
41A |
|
Rated Input capacity |
23KW |
|
No-load voltage |
68V±5% |
|
Current adjusting range |
30 ~500A |
|
Arc force adjusting range |
0~400 |
|
Ignition current adjusting range |
0~200 |
|
Carbon rod |
Φ4.0-Φ8.0 |
|
Duty cycle |
60% |
|
Power factor(cosΦ) |
0.93 |
|
Efficiency (η) |
85% |
|
Insulation grade |
F |
|
Case protection grade |
IP21S |
|
Cooling |
Wind |
|
Dimensions (mm) |
700×360×700（mm） |
|
Net weight (kg) |
53kg |
|
Remark |
Welding cable can be lengthened;
Metal case |
