Main characteristics:
● IGBT inverter technology
● Automatically adapt to the grid input
● Low no-load voltage, more safety
● For the acidic and alkaline rod ≤Φ4.0
● Arc force current given automatically so as to operate easily
● Pulse width current control technology to optimize the characteristics of power source to meet the welding process
● Portable for Convenient handling
● Dual power input adaptive
● ETL approva
|

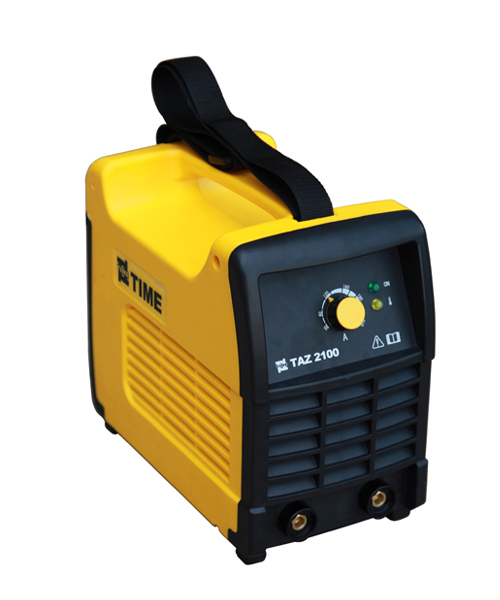

Model |
TAZ1600A |
TAZ2100A |
|
Rated input voltage(V) |
AC120V / 240V±15% 50~60Hz |
AC240V±15% 50~60Hz |
|
Rated input current (A) |
10.6 / 15.2 |
19.4 |
|
No-load voltage (V) |
91 |
85 |
|
Output current adjusting range(A) |
20～65 / 20～160 |
25～210 |
|
Duty cycle (40℃) |
20% / 30% |
20% |
|
Efficiency |
85% |
85% |
|
Insulation grade |
H |
H |
|
Case protection grade |
IP23S |
IP23S |
|
Cooling |
Wind |
Wind |
|
Dimensions (mm) |
325×180×280 |
325×180×280 |
|
Net weight (kg) |
5 |
5 |
