Main characteristics:
● IGBT inverter technology
● Wide range of power supply
● Good product consistency With a variety of TIG operation mode
● High frequency arc ignition, welding penetration well
● Performance stable, strong antiinterference ability
● Thermal design is reasonable to protect the machine perfectly
● Digital display for current to accurate preset welding current before welding
● With MMA function (200A above model)
● The welding cables can be lengthened to 50~100M/50mm2
● RS-485 communication socket match RC-6, RC-7 remote controller
● Realization of remote setting and supervision by TIME TWPM welding process management system
● Cellulose welding is optional
|

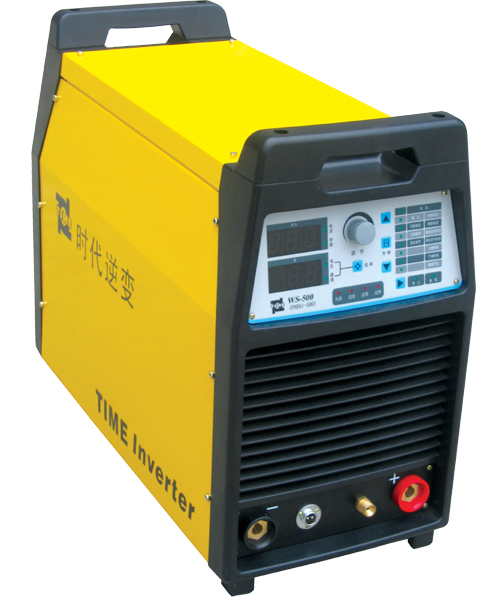

Model |
WS-500 |
|
Company type |
PNE61-500 |
|
Rated
input voltage(V) |
3 phase 380V±15% 50~60Hz |
|
Rated Input capacity (KW) |
23.5 |
|
No-load
voltage (V) |
78±5% |
|
Output current adjusting range(A) |
5~510 |
|
Slope
up time (s) |
0.1~99.9 |
|
Slope down time (s) |
0.1~99.9 |
|
Pre-flow
time (s) |
0~13 |
|
Post-flow time (s) |
0.1~50 |
|
Ignition
time (s) |
0.01~1s |
|
Duty cycle (40℃) |
60% |
|
Efficiency
(η) |
85% |
|
Power factor(cosΦ) |
0.93 |
|
Insulation
grade |
F |
|
Case protection grade |
IP23S |
|
Cooling
|
Wind |
|
Dimensions (mm) |
660×300×530 |
|
Net
weight (kg) |
41 |
