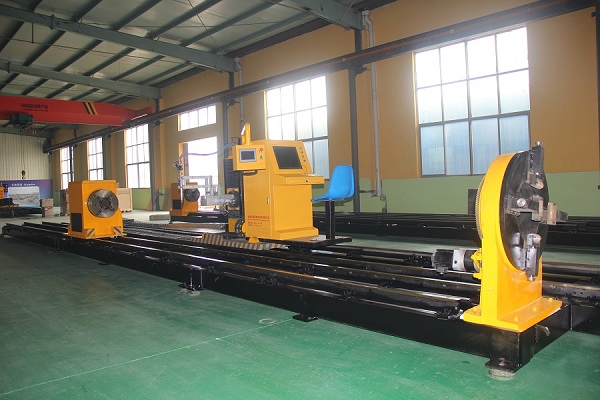

Model |
TDC-XF |
|
Effective cutting length (mm) |
6000 (Can be customized) |
|
Dimension(longitudinal track included) (mm) |
7200×1350×2000 (Standard) |
|
Cutting type |
Flame or plasma |
|
Cutting thickness (mm) |
Flame：6~60mm； Plasma： 2~14mm (Standard） |
|
Cutting speed（mm/min) |
Flame：20~700, Plasma：500~3500 |
|
Control system |
Industrial PC |
|
Software |
TIME PIPE |
|
Max. piercing cutting thickness of plasma (mm) |
14 |
|
Max. edge cutting thickness of plasma (mm) |
18 |
|
Working pressure of compressed gas (MPa) |
≥7 |
|
Gas flow of plasma (L/h) |
4500 |
|
Fuel gas |
Acetylene / Propane |
