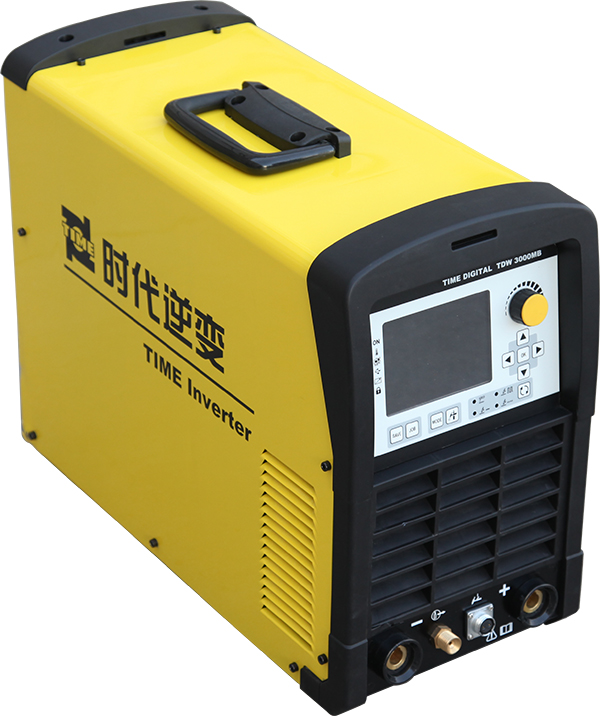

Intelligent power source (New model) by whole digital microprocessor control bases on the digital
platform of DSP (hardware main control circuit) and ARM (digital communication panel). It adopts
modular design concept and with characteristics of digital, intelligent, automation, network and
green to provide a new experience for the user. The welder can be upgraded conveniently and add
new functions by software without the hardware change.
Power input : 3 phase 220V is optional for all TD-Series welding machines.
Main characteristics:
● Digital setting for precise control, current is adjusted in units of 1A, 12 welding parameters can be accurately set to achieve high quality welding
● TIG welding 5A arc ignition, stable welding, arc concentration reached the international advanced level
● MMA, DC TIG, pulse TIG, TIG spot welding for multi-purpose
● MMA welding can be set as low no-load output for easy TIG welding
● Two kinds of arc-ignition methods: HF and Lift for TIG
● With line energy monitoring related functions, USB interface is reserved to export data
● Optional 10 welding methods, the welding sequence can be adjusted according to user needs to adapt to welder operating habits and process requirements
● Suitable for the industries of nuclear power, chemical construction, thermal power
● Small size, light weight, easy to carry
|
Model |
TDW 3000MB |
||
|
Rated input voltage (V) |
3 phase 380V±15% 50～60Hz |
||
|
Rated input current (A) |
11 |
||
|
Rated output capacity |
MMA 30% |
300A / 32V |
|
|
TIG 35% |
300A / 22V |
||
|
Rated no-load voltage (V) |
76±5% |
||
|
Low no-load voltage (V) |
24±5% |
||
|
Rated no-load current (A) |
＜1 |
||
|
Energy efficiency rating |
Grade 2 |
||
|
Power factor |
0.85 |
||
|
Efficiency |
90% |
||
|
Duty cycle（40℃）MMA |
30% |
||
|
Duty cycle（40℃）TIG |
35% |
||
|
Insulation grade |
F |
||
|
Case protection grade |
IP23S |
||
|
Dimensions (mm) |
560×249×423 |
||
|
Net weight (kg) |
24 |
||
|
MMA |
Ignition current (A) |
0～300 |
|
|
Arc force(A/ms) |
0～150 |
||
|
Welding current (A) |
10～300 |
||
|
Arc ignition time (s) |
0.1～2 |
||
|
Arc length adjustment (V) |
35～80 |
||
|
TIG |
Welding current (A) |
5～300 |
|
|
Initial current (A) |
5～300 |
||
|
Maintain current (A) |
5～300 |
||
|
Secondary current (A) |
5～300 |
||
|
Slope up time (s) |
0～10 |
||
|
Slope down time (s) |
0～10 |
||
|
Pre-flow time (s) |
0～10 |
||
|
Post-flow time (s) |
0～25 |
||
|
TIG spot time (s) |
0.1～25 |
||
|
Spot welding current (A) |
5～300 |
||
|
Peak current (A) |
5～300 |
||
|
Base current (A) |
5～300 |
||
|
Pulse frequency (Hz) |
0.1～500 |
||
|
Pulse duty cycle |
0.1～99% |
||
